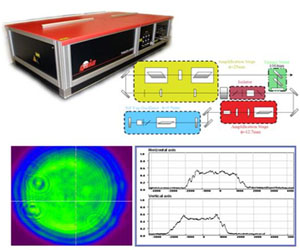

SGR-10 pulsed solid-state laser system(1 unit)

Time: 2011-03-11 News source : School of Mechanical Engineeri Browsing number:

Gain medium:Nd:YAG;

Powered by pulsed discharge xenon lamp;

Electro-optic Q switch;

Wavelength: 1064nm;(wavelength of 532nm,355nm and 266nm are available by crystal nonlinearity exchange)

Repetition rate: 10Hz;

Pulse duration ≤10ns;

Pulse-to-Pulse stability≤3%
